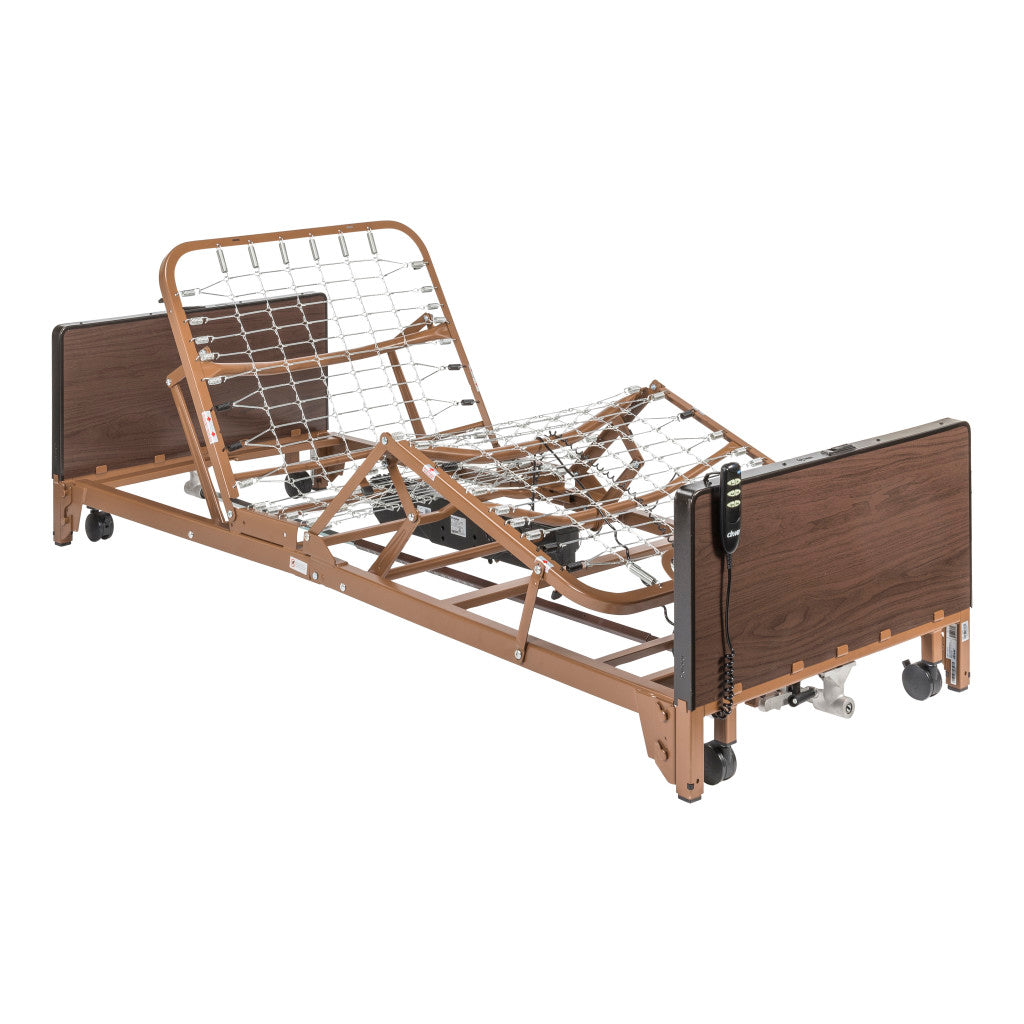

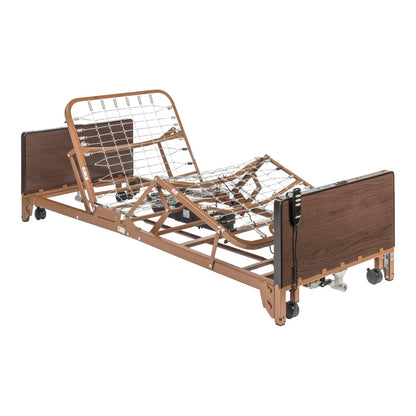

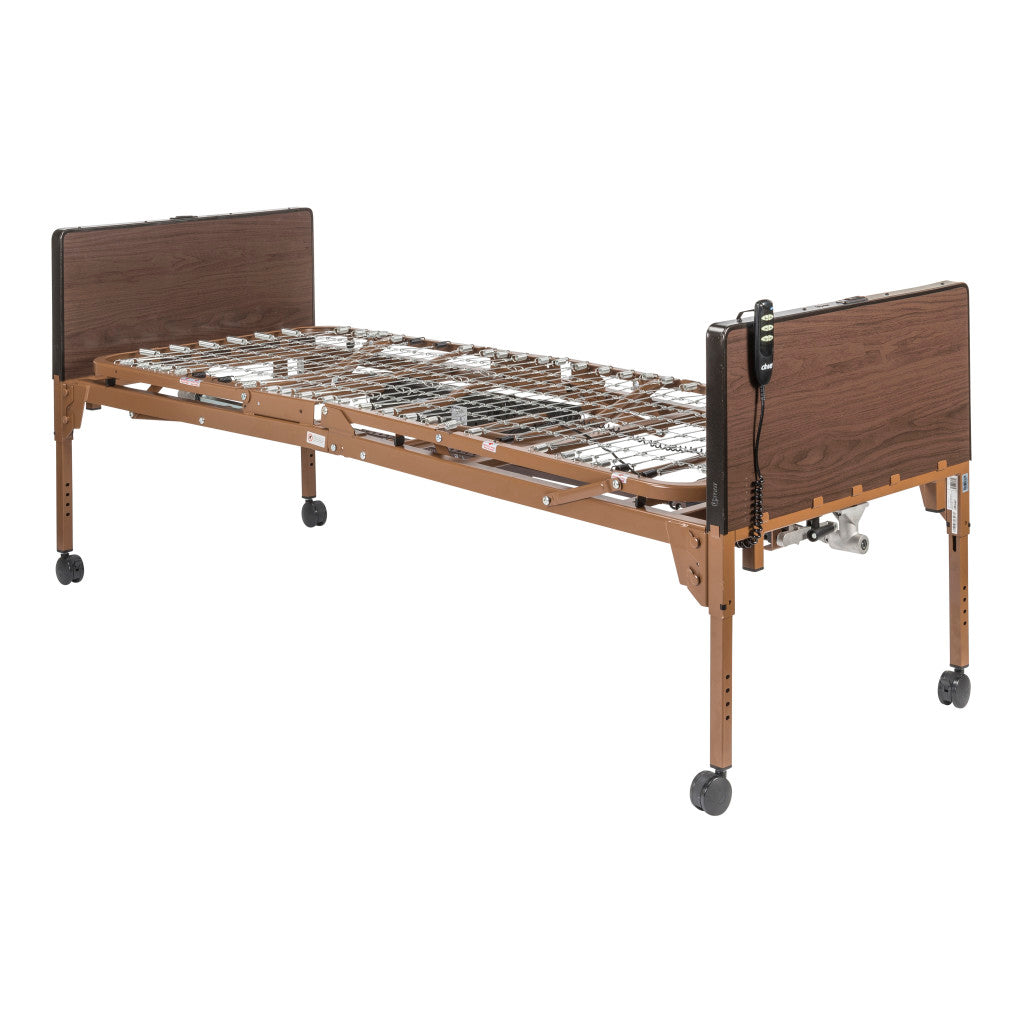

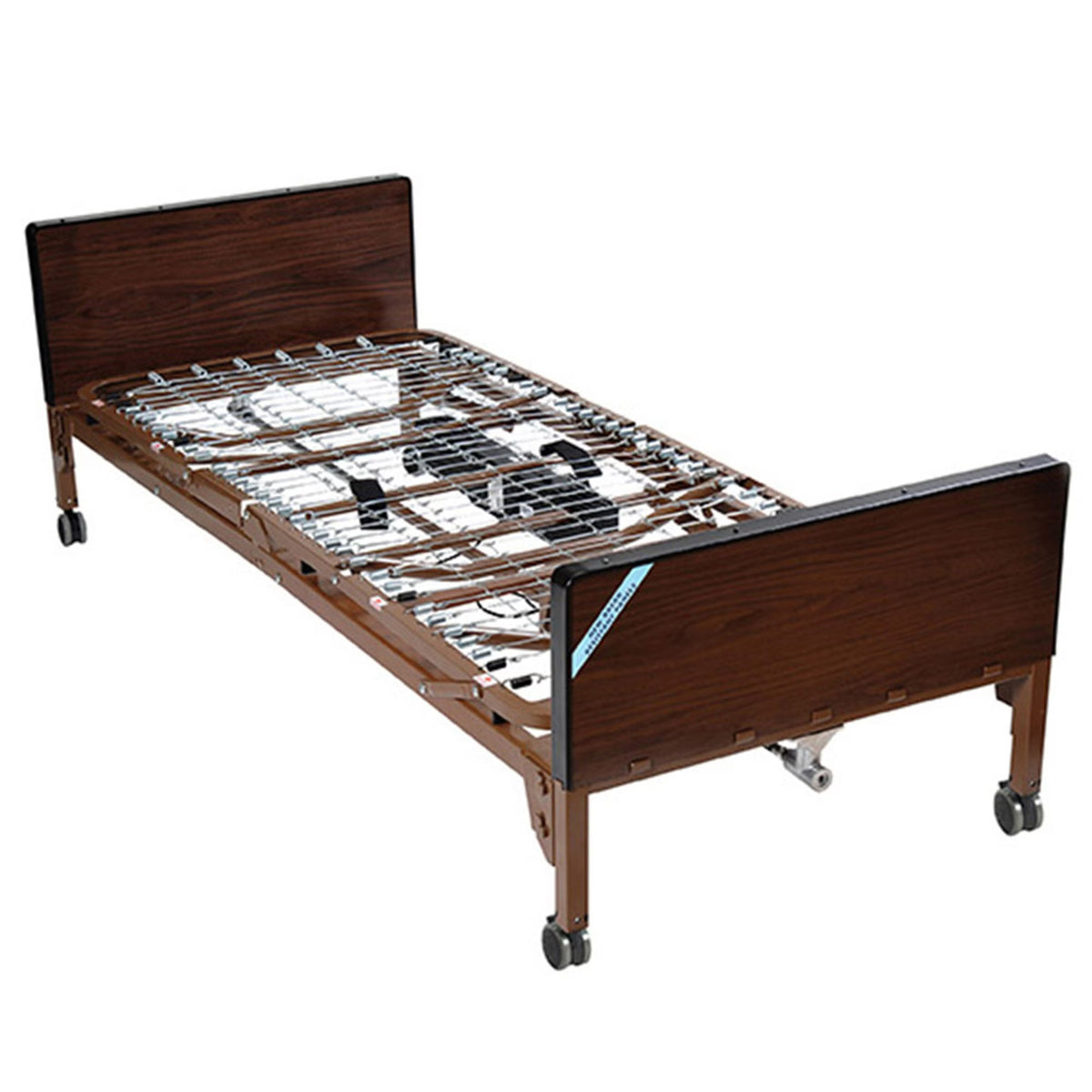

Drive Medical 15235 Delta Ultra-Light 1000 Full-Electric Low Bed

Features

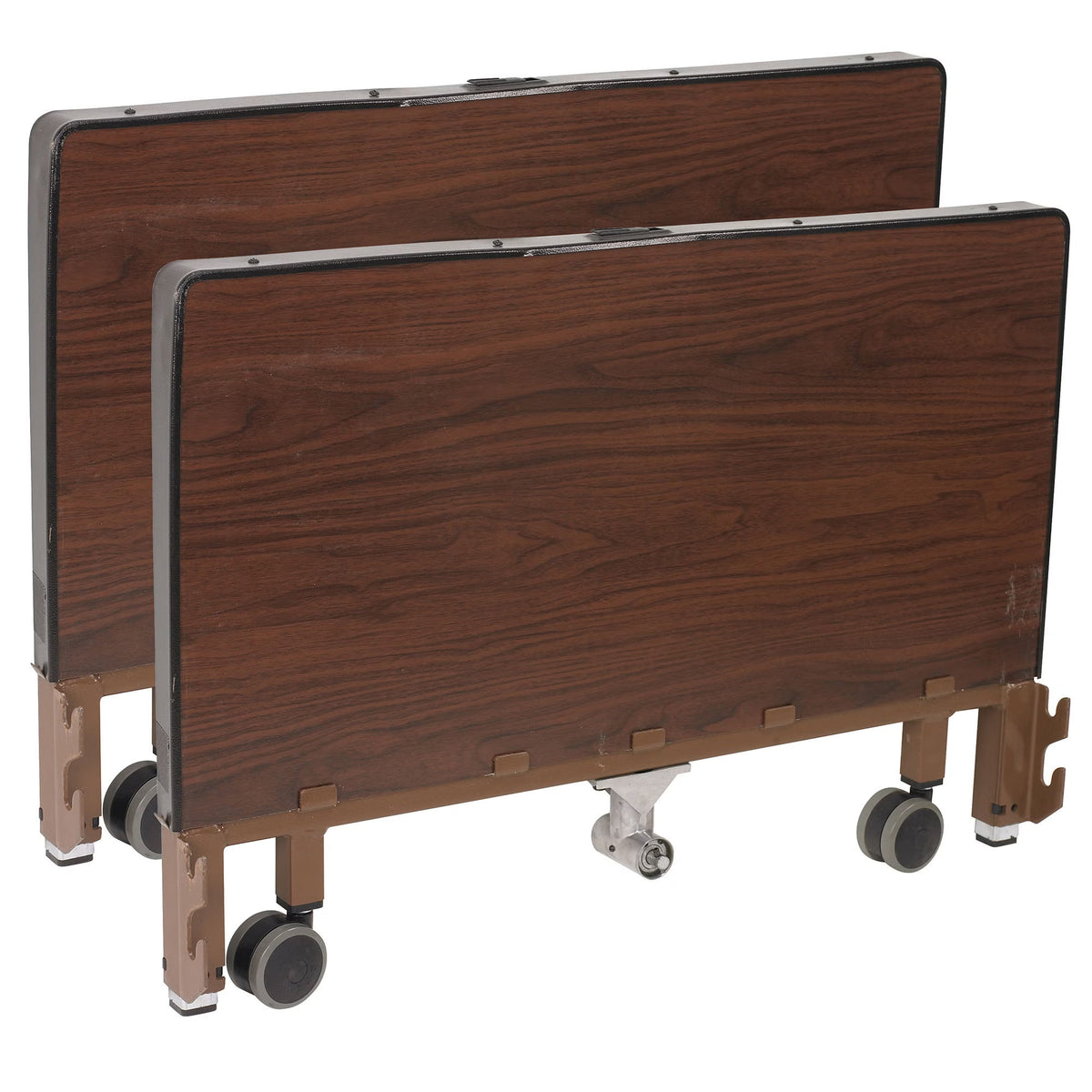

The Drive Medical Delta Ultra-Light 1000 Full-Electric Low Bed, model 15235, combines a low deck position with a lightweight channel frame and a large-button hand pendant. Wood-grain headboard and footboard panels offer a familiar look for a homecare setting, with break- and scratch-resistant surfaces.

Electric Low Bed Features

• Deck height adjusts from 9.25 to 23 inches.
• Self-contained motor is designed to reduce weight and noise; the height-adjustable motor comes pre-installed on the foot section.

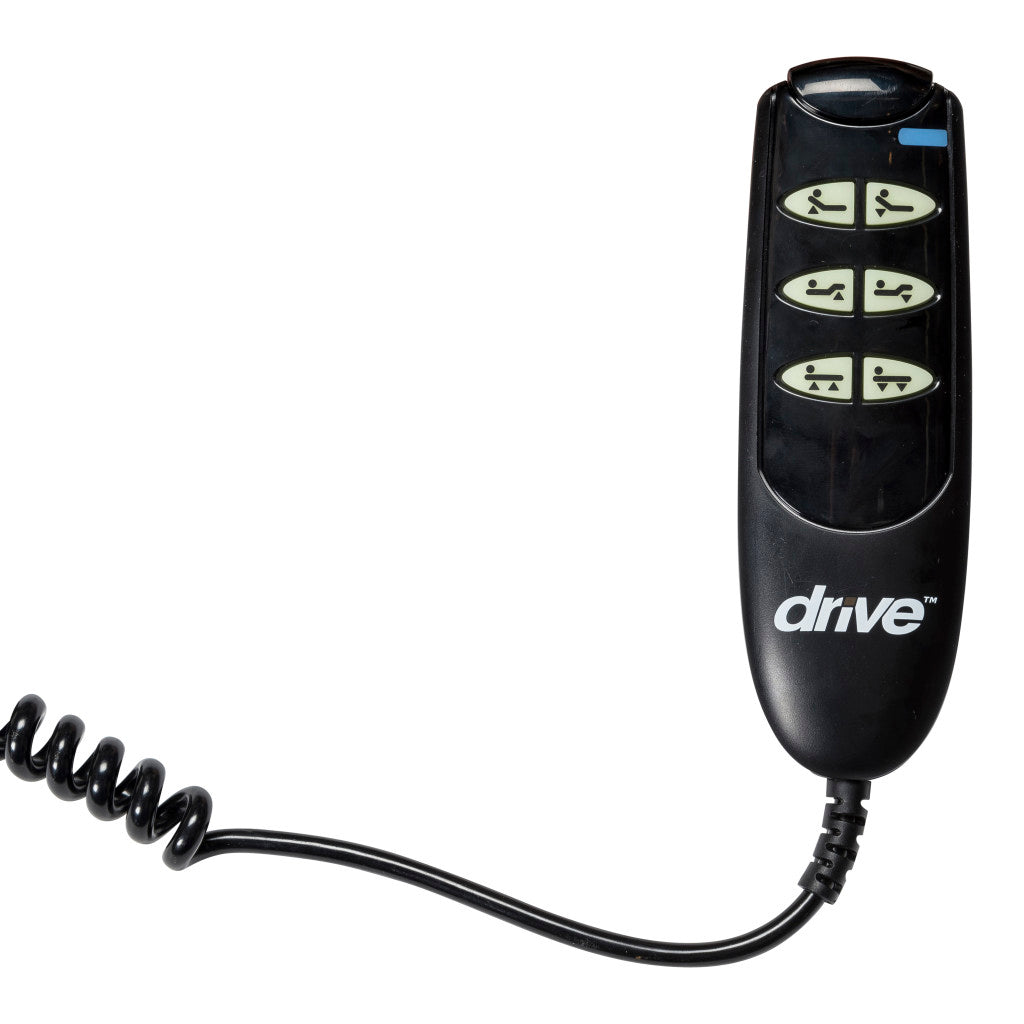

• Large, easy-to-use hand pendant controls.
• Top-mounted hand crank provides caregiver access without bending down to the low bed position.
• Casters can be moved from the standard to the low bed position.
• Channel frame construction and a zinc-coated spring deck provide strength with reduced weight.
• Labels and color-coded springs help guide correct installation of compatible side rails.

Product Details

• Manufacturer: Drive Medical
• Product line: Delta Ultra-Light 1000
• Catalog number: 15235
• Configuration: Bed only; mattress and side rails are not included.
• Weight capacity: 450 lb
• Product weight: 175 lb
• Manufacturer-listed carton shipping weight: 191 lb
• UPC: 822383212142

Power-Failure Function

The manufacturer states that a 9-volt battery located in the hand control can lower the head and foot sections up to nine times during a power failure. Follow the owner's manual for battery requirements and operating instructions.

Compatibility and Accessories

The Delta 1000 frame is designed for use with Drive and most other manufacturers' bed ends, with a transition box that allows the rotation of the high/low shaft to be changed. Optional extension kit 15030EXTKIT extends the bed length from 80 to 84 inches. Confirm compatibility before purchasing accessories; the extension kit, mattress, and side rails are sold separately.

Manufacturer Warranty

For the original purchaser, Drive Medical lists a five-year warranty on the motor and hand control, a limited lifetime warranty on welds and frame, and a one-year warranty on all other parts and components. Manufacturer terms and conditions apply.
