Baxter 7N8310 ONE-LINK Microbore IV Extension Set – 7.7", Needle-Free, 325 PSI
Baxter 7N8310 ONE-LINK Microbore IV Extension Set – 7.7", Needle-Free, 325 PSI
Couldn't load pickup availability
Features
Baxter 7N8310 ONE-LINK Microbore IV Extension Set – 7.7", Needle-Free, 325 PSI

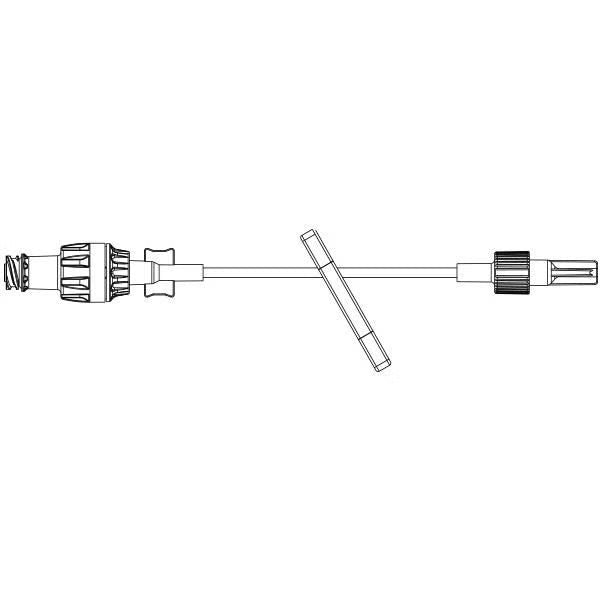

The Baxter 7N8310 ONE-LINK Microbore IV Extension Set is a 7.7-inch (19.5 cm) straight-type catheter extension set featuring a ONE-LINK needle-free IV connector with neutral fluid displacement, a male Luer-lock adapter, and a low 0.34 mL priming volume.
Designed for compatible intravenous access systems, this Baxter microbore extension tubing provides a short, low-volume fluid pathway with a power-injection rating of up to 325 psi (2,241 kPa).
The Baxter 7N8310 is manufactured without DEHP or natural rubber latex and is supplied sterile and nonpyrogenic for professional healthcare use.
Key Features and Benefits
-
7.7-Inch Microbore Extension Tubing: Provides approximately 19.5 cm of additional catheter extension length.
-
ONE-LINK Needle-Free IV Connector: Features a needle-free access connector for compatible intravenous devices.
-
Neutral Fluid Displacement: Designed with a neutral-displacement connector configuration.
-
Power Injectable to 325 PSI: Manufacturer-rated for compatible power-injection applications up to 325 psi (2,241 kPa).
-
Low 0.34 mL Priming Volume: Minimizes internal fluid volume within the extension set.
-
Male Luer-Lock Adapter: Includes a fixed collar for connection to compatible IV equipment.
-
Straight-Type Configuration: Short, single-path microbore catheter extension tubing.
-
Non-DEHP Construction: Manufactured without DEHP.
-
Latex-Free: Not made with natural rubber latex.
-
Sterile, Nonpyrogenic Fluid Path: Supplied in sterile packaging.
-
Single-Use Device: Disposable catheter extension set.
Baxter 7N8310 Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Baxter Healthcare |
| Brand | ONE-LINK |
| Manufacturer Part Number | 7N8310 |
| Product Type | Microbore Catheter Extension Set |
| Tubing Length | 7.7 inches (19.5 cm) |
| Tubing Bore | Microbore / Minivolume |
| Tubing Configuration | Straight |
| Needle-Free Connector | ONE-LINK |
| Fluid Displacement | Neutral |
| Power Injection Rating | 325 psi (2,241 kPa) |
| Approximate Priming Volume | 0.34 mL |
| Connector | Male Luer Lock |
| Collar Type | Fixed |
| Catheter Connector | Non-Bonded |
| DEHP-Free | Yes |
| PVC-Free | No |
| Latex-Free | Yes |
| Fluid Path | Sterile, Nonpyrogenic |
| Use | Single Use |
| Prescription Required | Yes |
| Manufacturer Case Quantity | 200 Sets |
| Manufacturer GTIN | 0085412476728 |
ONE-LINK Needle-Free Catheter Extension Tubing
The Baxter 7N8310 ONE-LINK extension set combines a low-volume microbore tubing configuration with a neutral-displacement needle-free connector.
The short tubing length and approximately 0.34 mL priming volume make it an option for clinical applications where additional catheter extension length is needed while maintaining a low internal fluid volume.
The connector's manufacturer-rated power-injection capability also distinguishes this product from conventional IV extension tubing not designed for power injection.
Common professional healthcare settings include:
-
Hospitals and acute care facilities
-
Vascular access departments
-
Radiology and diagnostic imaging departments
-
Outpatient infusion centers
-
Specialty clinics and procedural departments
Important: Power-injection use requires the entire connected system, including the vascular access device and other components, to be rated for the intended pressure and flow conditions. Follow the manufacturer's instructions for use.
Frequently Asked Questions
What is Baxter 7N8310?
Baxter 7N8310 is a ONE-LINK microbore catheter extension set with a needle-free neutral-displacement connector, male Luer-lock adapter, and 7.7-inch tubing length.
How long is Baxter 7N8310 IV extension tubing?
The extension set measures approximately 7.7 inches, or 19.5 cm.
What is the priming volume?
The approximate priming volume is 0.34 mL.
Does Baxter 7N8310 have a needle-free connector?
Yes. It includes a ONE-LINK needle-free IV connector with neutral fluid displacement.
Is Baxter 7N8310 power injectable?
Yes. Baxter rates the extension set for power-injection applications up to 325 psi (2,241 kPa), subject to the manufacturer's instructions and compatibility requirements.
What does neutral fluid displacement mean?
Neutral fluid displacement refers to the connector's fluid-displacement design during connection and disconnection. Appropriate clinical technique and manufacturer instructions remain essential.
Is Baxter 7N8310 DEHP-free?
Yes. Baxter identifies this product as DEHP-free.
Is Baxter 7N8310 PVC-free?
No. Baxter's product specifications indicate that the device is not PVC-free.
Is Baxter 7N8310 latex-free?
Yes. Baxter lists the product as latex-free and not made with natural rubber latex.
Does Baxter 7N8310 have a Luer-lock connector?
Yes. It includes a male Luer-lock adapter with a fixed collar.
How many Baxter 7N8310 extension sets come in a case?
The manufacturer case quantity is 200 sets. Confirm whether the selected purchasing unit is an individual set or a full case.
Order Baxter ONE-LINK IV Extension Sets from Lexicon Medical Supply
Lexicon Medical Supply offers Baxter IV extension tubing, ONE-LINK needle-free connectors, microbore catheter extension sets, and infusion therapy supplies for hospitals, imaging departments, infusion centers, and healthcare facilities.
Contact Lexicon Medical Supply for product availability, purchasing units, case quantities, and volume ordering inquiries for the Baxter 7N8310 ONE-LINK Microbore IV Extension Set.
Prescription medical device for professional healthcare use. Verify pressure ratings, connected-device compatibility, and the manufacturer's instructions for use before use.
