IV Catheter Gauge Chart: Choosing the Right Size for Vascular Access
Ask ten emergency or infusion nurses what the most commonly used IV catheter size is and you'll probably hear the same answer: a 20 gauge. But the reality is that there isn't a single "best" IV catheter size for every clinical scenario.
The right catheter depends entirely on the patient's anatomy and your immediate therapeutic goals. A trauma patient requiring rapid fluid resuscitation has vastly different vascular needs than a pediatric patient receiving intermittent antibiotics, or an elderly patient with fragile, rolling veins.
Understanding the physics of IV catheter gauges helps clinicians select the appropriate device, improve first-stick success rates, minimize phlebitis (vein inflammation), and maximize patient comfort.
Decoding the Gauge System: The Flow Physics
The most common point of confusion for students and new healthcare workers is the gauge system itself. The gauge number is inversely proportional to the diameter of the needle. A smaller gauge number means a physically larger catheter.
-
A 14-gauge catheter is a thick, wide-bore line.
-
A 24-gauge catheter is a thin, ultra-fine line.
This distinction is critical due to fluid dynamics (Poiseuille’s Law), which proves that doubling the internal diameter of a catheter increases its fluid flow rate by a factor of sixteen. For that reason, emergency departments and trauma teams reach for the lowest gauge numbers available, while pediatric and geriatric units rely on higher gauge configurations.
A Quick Reference Guide to IV Catheter Sizes
| Gauge | Color Code | Max Flow Rate (Approx.) | Primary Clinical Applications |
| 14G | 🟠 Orange | ~240 mL/min | Severe trauma, major surgery, rapid fluid resuscitation |
| 16G | 🩶 Gray | ~180 mL/min | High-volume blood transfusions, open surgical procedures |
| 18G | 🟢 Green | ~90 mL/min | Emergency care, CT contrast imaging, routine blood administration |
| 20G | 💗 Pink | ~60 mL/min | General adult IV therapy, routine medical-surgical hydration |

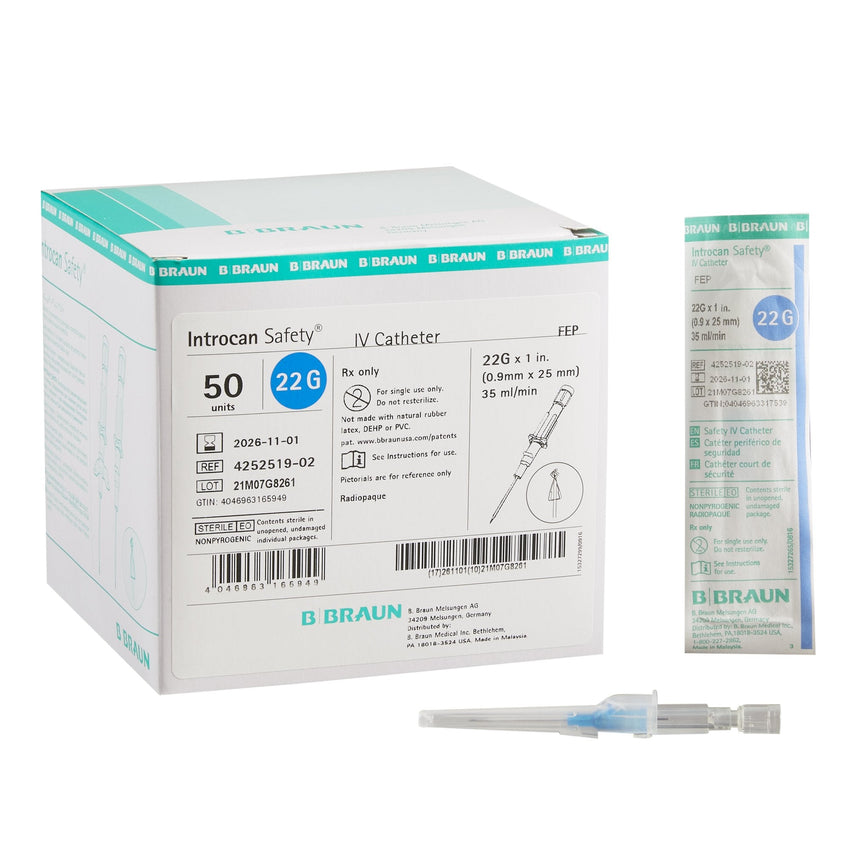

| 22G | 🔵 Blue | ~35 mL/min | Elderly/geriatric patients, pediatric infusions, difficult venous access |
| 24G | 🟡 Yellow | ~20 mL/min | Pediatric and neonatal care, fragile or oncology-damaged veins |
The Clinical Workhorse: 20 Gauge IV Catheters
If there is a "default" standard in modern healthcare, the 20 gauge (Pink) catheter is it.
Most adult peripheral veins can comfortably accommodate a 20G line without compromising vascular blood flow around the plastic sheath. It provides an optimal, stable flow rate for routine maintenance fluids, IV medications, and standard packed red blood cell (PRBC) transfusions. Because of this extreme versatility, 20G inventory is consistently the highest-volume consumable ordered by hospitals, ambulatory surgery centers, and outpatient infusion clinics.
When Bigger Is Better (Large-Bore Catheters)
There are critical, high-stakes situations where reaching for a large-bore line (14G, 16G, or 18G) is mandatory.
In active trauma cases, profound hemorrhagic shock, or major cardiothoracic surgeries, clinicians must push massive volumes of warm crystalloids or blood products in seconds. A 14-gauge catheter can empty a 1-liter bag of saline in under four minutes under pressure. Furthermore, diagnostic imaging protocols require a minimum of an 18-gauge catheter placed in the antecubital fossa to withstand the extreme high-pressure injectors used during standard CT contrast scans.
When Smaller Is Smarter
Bigger isn't always better, and forcing a large catheter into a small vessel leads to mechanical phlebitis, vessel blowouts, and severe patient discomfort.
Many geriatric patients present with fragile, sclerosed (hardened) veins that easily blow under pressure. Similarly, neonatal and pediatric patients possess delicate vascular networks that require a 24G micro-line simply to fit the anatomical lumen. Experienced clinicians recognize that a successful, first-attempt stick with a stable 22G or 24G line is infinitely better for the patient than multiple painful, failed attempts to force a 18G green line into an inadequate vein.
Optimizing IV Catheter Inventory for Your Facility
Because patient demographics and clinical emergencies change by the hour, managing a balanced vascular access inventory is vital to maintaining operational readiness. While an EMS agency or ER department will skew heavily toward 14G-18G emergency packs, a pediatric office, dermatology suite, or wellness hydration clinic relies almost exclusively on 22G-24G arrays.
